Brief
My goal is to make posts like this the SIMPLEST place on the internet to learn how to do things that caused me trouble. That way, if this is found, someone doesn’t have to do the same digging I had to do.
This post DOES assume you have a basic understanding of OAuth2 and Spring Security around classes and concepts like ClientRegistrations and AuthorizationGrantType.
If you’re missing that, go do a sample project of basic OAuth2 and come back later!
What is OAuth2?
OAuth2 is a popular authorization framework that allows users to grant third-party applications access to their data without revealing their credentials. It’s often used for services like social media logins, API integrations, and more.
Tokens used in the OAuth2 process have required and optional claims. These claims are simple fields that are validated by the receiver of the token as defined in https://datatracker.ietf.org/doc/html/rfc7519#section-4.1.3.
One of these claims is the “aud” claim, or the audience claim.
The “aud” (audience) claim identifies the recipients that the JWT is intended for and principal that intends to process the JWT must identify itself with a value in the audience claim; otherwise, the JWT must be rejected. The “aud” value is typically an array of case-sensitive strings, each containing a StringOrURI value, though it can also be a single case-sensitive string when there is only one audience. The interpretation of audience values is generally application-specific, and the use of this claim is optional. This is all for defense against “replay attacks”, where a token is re-used to call a different target once it’s stolen from the initial request.
Why do I care?
In most systems, these audience claims are set by the OAuth2 provider. For example, if you have a client configured for your application that calls server-a, the oauth2 server might set every user of that client to automatically set the audience to `“aud”: “server-a”. This means a client like Spring’s oauth2-client has no reason to care about the audience on the token.
However, there is an uncommon scenario where a federated set of systems may need to dynamically set the audience claim. This is usually done by allowing some
sort of query_parameter on the token request. For example; providing an intended_audience=my-target-server query parameter. This would inform the oauth server
to set the audience claim to "aud": "my-target-server".

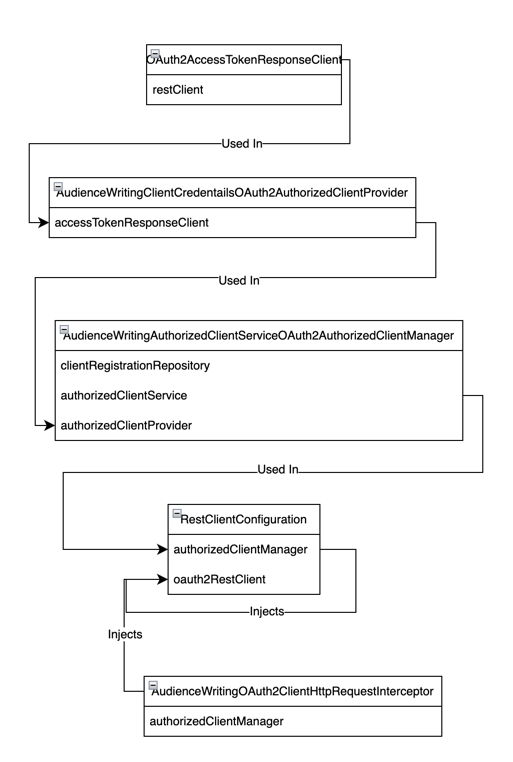

Spring Security - Component Model
The main goal of this article is to have a single source of information for setting up custom Client Credentials Provider in Spring Security. The example in this post will be dynamically setting the “aud” claim based on the target host.
Setting up our Overrides
Many of these classes are final, so to implement our functionality, we’re going to create sibling classes and inject them into the Spring Security management layer so that we can control our token requests!
We set up the initial configuration in a RestClientConfiguration class
@Configuration
public class RestClientConfiguration
{
@Bean
public OAuth2AuthorizedClientManager authorizedClientManager (
ClientRegistrationRepository clientRegistrationRepository,
OAuth2AuthorizedClientService authorizedClientService
){
// We create a manager using the autowired clientRegistrations from YAML and connect it to the service
AudienceWritingAuthorizedClientServiceOAuth2AuthorizedClientManager authorizedClientManager =
new AudienceWritingAuthorizedClientServiceOAuth2AuthorizedClientManager(clientRegistrationRepository, authorizedClientService);
// Setting the clientManager to look for a clientCredentials configuration
authorizedClientManager.setAuthorizedClientProvider(new AudienceWritingClientCredentialsOAuth2AuthorizedClientProvider());
// This customizer is crucial for passing RestClient attributes to the OAuth2AuthorizeRequest
authorizedClientManager.setContextAttributesMapper(authorizeRequest -> {
// The OAuth2AuthorizedClientInterceptor automatically copies RestClient's
// attributes into the OAuth2AuthorizeRequest's attributes.
// So, we just return the existing attributes.
return new HashMap<>(authorizeRequest.getAttributes());
});
return authorizedClientManager;
}
@Bean
public RestClient oauth2RestClient(
OAuth2AuthorizedClientManager authorizedClientManager) {
// We instantiate a new interceptor to load into RestClient
AudienceWritingOAuth2ClientHttpRequestInterceptor oAuth2ClientHttpRequestInterceptor =
new AudienceWritingOAuth2ClientHttpRequestInterceptor(authorizedClientManager);
// Then provide it the client registration to resolve the id from
// From here we simply return the client with any custom configuration, and we're good to go!
return RestClient.builder()
.baseUrl("https://httpbin.org/headers")
.requestInterceptor(oAuth2ClientHttpRequestInterceptor)
.build();
}
}
The Classes at Play
With our initial configuration, the following classes are what we’re going to be either extending or overwriting. Our overridden versions will be included below this section:
Please note: This is focusing on the ClientCredentials grant type for OAuth2. The other types are similar but may have different classes or class hierarchy.
AuthorizedClientServiceOAuth2AuthorizedClientManager
This manager contains the overall configuration and bootstrapping of the token retrieving operation that executes automagically before RestClient requests that are configured to utilize it.
The bean we define in the RestClientConfiguration returns an OAuth2AuthorizedClientManager, with the
referenced class here being just one example. This bean is then used to instantiate the RestClient’s
ClientHttpRequestInterceptor.
ClientCredentialsOAuth2AuthorizedClientProvider
OAuth2AuthorizedClientProvider implementations attempt to authorize or re-authorize the configured ClientRegistration. It contains a context object that maintains the relevant information for performing the aforementioned authorizaton or re-authorizations.
OAuth2ClientHttpRequestInterceptor
This is a new class that provides an easy mechanism for using an OAuth2AuthorizedClient to make requests
by automatically injecting a bearer token for OAuth2 requests. It is defined in our RestClientConfiguration above.
OAuth2ClientCredentialsGrantRequest
This object contains the client credentials and other client registration details relevant for querying for a new token.
OAuth2AccessTokenResponseClient
This class performs the actual exchange for an access token at the authorization server’s token endpoint. This parent class is implemented based on the underlying oauth2 type. In this post, we’ll be overriding the ClientCredentials implementation of a TokenResponseClient.
Overriding and Injecting
AudienceWritingAuthorizedClientServiceOAuth2AuthorizedClientManager
In our version of this class, we’re going to implement the base OAuth2AuthorizedClientManager class.
public class AudienceWritingAuthorizedClientServiceOAuth2AuthorizedClientManager implements OAuth2AuthorizedClientManager {
private static final OAuth2AuthorizedClientProvider DEFAULT_AUTHORIZED_CLIENT_PROVIDER = OAuth2AuthorizedClientProviderBuilder
.builder()
.clientCredentials()
.build();
private final ClientRegistrationRepository clientRegistrationRepository;
private final OAuth2AuthorizedClientService authorizedClientService;
private OAuth2AuthorizedClientProvider authorizedClientProvider;
private Function<OAuth2AuthorizeRequest, Map<String, Object>> contextAttributesMapper;
private OAuth2AuthorizationSuccessHandler authorizationSuccessHandler;
private OAuth2AuthorizationFailureHandler authorizationFailureHandler;
/**
* Constructs an {@code AuthorizedClientServiceOAuth2AuthorizedClientManager} using
* the provided parameters.
* @param clientRegistrationRepository the repository of client registrations
* @param authorizedClientService the authorized client service
*/
public AudienceWritingAuthorizedClientServiceOAuth2AuthorizedClientManager(
ClientRegistrationRepository clientRegistrationRepository,
OAuth2AuthorizedClientService authorizedClientService) {
Assert.notNull(clientRegistrationRepository, "clientRegistrationRepository cannot be null");
Assert.notNull(authorizedClientService, "authorizedClientService cannot be null");
this.clientRegistrationRepository = clientRegistrationRepository;
this.authorizedClientService = authorizedClientService;
this.authorizedClientProvider = DEFAULT_AUTHORIZED_CLIENT_PROVIDER;
this.contextAttributesMapper = new AuthorizedClientServiceOAuth2AuthorizedClientManager.DefaultContextAttributesMapper();
this.authorizationSuccessHandler = (authorizedClient, principal, attributes) -> authorizedClientService
.saveAuthorizedClient(authorizedClient, principal);
this.authorizationFailureHandler = new RemoveAuthorizedClientOAuth2AuthorizationFailureHandler(
(clientRegistrationId, principal, attributes) -> authorizedClientService
.removeAuthorizedClient(clientRegistrationId, principal.getName()));
}
@Nullable
@Override
public OAuth2AuthorizedClient authorize(OAuth2AuthorizeRequest authorizeRequest) {
Assert.notNull(authorizeRequest, "authorizeRequest cannot be null");
String clientRegistrationId = authorizeRequest.getClientRegistrationId();
OAuth2AuthorizedClient authorizedClient = authorizeRequest.getAuthorizedClient();
Authentication principal = authorizeRequest.getPrincipal();
OAuth2AuthorizationContext.Builder contextBuilder;
if (authorizedClient != null) {
contextBuilder = OAuth2AuthorizationContext.withAuthorizedClient(authorizedClient);
}
else {
ClientRegistration clientRegistration = this.clientRegistrationRepository
.findByRegistrationId(clientRegistrationId);
Assert.notNull(clientRegistration,
"Could not find ClientRegistration with id '" + clientRegistrationId + "'");
authorizedClient = this.authorizedClientService.loadAuthorizedClient(clientRegistrationId,
principal.getName());
if (authorizedClient != null) {
contextBuilder = OAuth2AuthorizationContext.withAuthorizedClient(authorizedClient);
}
else {
contextBuilder = OAuth2AuthorizationContext.withClientRegistration(clientRegistration);
}
}
OAuth2AuthorizationContext authorizationContext = buildAuthorizationContext(authorizeRequest, principal,
contextBuilder);
try {
authorizedClient = this.authorizedClientProvider.authorize(authorizationContext);
}
catch (OAuth2AuthorizationException ex) {
this.authorizationFailureHandler.onAuthorizationFailure(ex, principal, Collections.emptyMap());
throw ex;
}
if (authorizedClient != null) {
this.authorizationSuccessHandler.onAuthorizationSuccess(authorizedClient, principal,
Collections.emptyMap());
}
else {
// In the case of re-authorization, the returned `authorizedClient` may be
// null if re-authorization is not supported.
// For these cases, return the provided
// `authorizationContext.authorizedClient`.
if (authorizationContext.getAuthorizedClient() != null) {
return authorizationContext.getAuthorizedClient();
}
}
return authorizedClient;
}
private OAuth2AuthorizationContext buildAuthorizationContext(OAuth2AuthorizeRequest authorizeRequest,
Authentication principal, OAuth2AuthorizationContext.Builder contextBuilder) {
// @formatter:off
return contextBuilder.principal(principal)
.attributes((attributes) -> {
Map<String, Object> contextAttributes = this.contextAttributesMapper.apply(authorizeRequest);
if (!CollectionUtils.isEmpty(contextAttributes)) {
attributes.putAll(contextAttributes);
}
})
.build();
// @formatter:on
}
/**
* Sets the {@link OAuth2AuthorizedClientProvider} used for authorizing (or
* re-authorizing) an OAuth 2.0 Client.
* @param authorizedClientProvider the {@link OAuth2AuthorizedClientProvider} used for
* authorizing (or re-authorizing) an OAuth 2.0 Client
*/
public void setAuthorizedClientProvider(OAuth2AuthorizedClientProvider authorizedClientProvider) {
Assert.notNull(authorizedClientProvider, "authorizedClientProvider cannot be null");
this.authorizedClientProvider = authorizedClientProvider;
}
/**
* Sets the {@code Function} used for mapping attribute(s) from the
* {@link OAuth2AuthorizeRequest} to a {@code Map} of attributes to be associated to
* the {@link OAuth2AuthorizationContext#getAttributes() authorization context}.
* @param contextAttributesMapper the {@code Function} used for supplying the
* {@code Map} of attributes to the {@link OAuth2AuthorizationContext#getAttributes()
* authorization context}
*/
public void setContextAttributesMapper(
Function<OAuth2AuthorizeRequest, Map<String, Object>> contextAttributesMapper) {
Assert.notNull(contextAttributesMapper, "contextAttributesMapper cannot be null");
this.contextAttributesMapper = contextAttributesMapper;
}
}
AudienceWritingClientCredentialsOAuth2AuthorizedClientProvider
OAuth2AuthorizedClientProvider implementations attempt to authorize or re-authorize the configured ClientRegistration. It contains a context object that maintains the relevant information for performing the aforementioned authorizaton or re-authorizations.
public class AudienceWritingClientCredentialsOAuth2AuthorizedClientProvider implements OAuth2AuthorizedClientProvider {
private AudienceWritingOAuth2AccessTokenResponseClient accessTokenResponseClient = new AudienceWritingOAuth2AccessTokenResponseClient();
private Duration clockSkew = Duration.ofSeconds(60);
private Clock clock = Clock.systemUTC();
/**
* Attempt to authorize (or re-authorize) the
* {@link OAuth2AuthorizationContext#getClientRegistration() client} in the provided
* {@code context}. Returns {@code null} if authorization (or re-authorization) is not
* supported, e.g. the client's {@link ClientRegistration#getAuthorizationGrantType()
* authorization grant type} is not {@link AuthorizationGrantType#CLIENT_CREDENTIALS
* client_credentials} OR the {@link OAuth2AuthorizedClient#getAccessToken() access
* token} is not expired.
* @param context the context that holds authorization-specific state for the client
* @return the {@link OAuth2AuthorizedClient} or {@code null} if authorization (or
* re-authorization) is not supported
*/
@Override
@Nullable
public OAuth2AuthorizedClient authorize(OAuth2AuthorizationContext context) {
Assert.notNull(context, "context cannot be null");
ClientRegistration clientRegistration = context.getClientRegistration();
if (!AuthorizationGrantType.CLIENT_CREDENTIALS.equals(clientRegistration.getAuthorizationGrantType())) {
return null;
}
OAuth2AuthorizedClient authorizedClient = context.getAuthorizedClient();
if (authorizedClient != null && !hasTokenExpired(authorizedClient.getAccessToken())) {
// If client is already authorized but access token is NOT expired than no
// need for re-authorization
return null;
}
// As per spec, in section 4.4.3 Access Token Response
// https://tools.ietf.org/html/rfc6749#section-4.4.3
// A refresh token SHOULD NOT be included.
//
// Therefore, renewing an expired access token (re-authorization)
// is the same as acquiring a new access token (authorization).
OAuth2ClientCredentialsAudiencedGrantRequest clientCredentialsGrantRequest = new OAuth2ClientCredentialsAudiencedGrantRequest(
clientRegistration, context.getAttribute("audience"));
OAuth2AccessTokenResponse tokenResponse = getTokenResponse(clientRegistration, clientCredentialsGrantRequest);
return new OAuth2AuthorizedClient(clientRegistration, context.getPrincipal().getName(),
tokenResponse.getAccessToken());
}
private OAuth2AccessTokenResponse getTokenResponse(ClientRegistration clientRegistration,
OAuth2ClientCredentialsAudiencedGrantRequest clientCredentialsGrantRequest) {
try {
return this.accessTokenResponseClient.getTokenResponse(clientCredentialsGrantRequest);
}
catch (OAuth2AuthorizationException ex) {
throw new ClientAuthorizationException(ex.getError(), clientRegistration.getRegistrationId(), ex);
}
}
private boolean hasTokenExpired(OAuth2Token token) {
return this.clock.instant().isAfter(token.getExpiresAt().minus(this.clockSkew));
}
}
AudienceWritingOAuth2ClientHttpRequestInterceptor
This is a new class that provides an easy mechanism for using an OAuth2AuthorizedClient to make requests
by automatically injecting a bearer token for OAuth2 requests. It is defined in our RestClientConfiguration above.
public class AudienceWritingOAuth2ClientHttpRequestInterceptor implements ClientHttpRequestInterceptor {
// @formatter:off
private static final Map<HttpStatusCode, String> OAUTH2_ERROR_CODES = Map.of(
HttpStatus.UNAUTHORIZED, OAuth2ErrorCodes.INVALID_TOKEN,
HttpStatus.FORBIDDEN, OAuth2ErrorCodes.INSUFFICIENT_SCOPE
);
// @formatter:on
private static final Authentication ANONYMOUS_AUTHENTICATION = new AnonymousAuthenticationToken("anonymous",
"anonymousUser", AuthorityUtils.createAuthorityList("ROLE_ANONYMOUS"));
private final OAuth2AuthorizedClientManager authorizedClientManager;
private OAuth2ClientHttpRequestInterceptor.ClientRegistrationIdResolver clientRegistrationIdResolver = new RequestAttributeClientRegistrationIdResolver();
private OAuth2ClientHttpRequestInterceptor.PrincipalResolver principalResolver = new SecurityContextHolderPrincipalResolver();
// @formatter:off
private OAuth2AuthorizationFailureHandler authorizationFailureHandler =
(clientRegistrationId, principal, attributes) -> { };
// @formatter:on
/**
* Constructs a {@code OAuth2ClientHttpRequestInterceptor} using the provided
* parameters.
* @param authorizedClientManager the {@link OAuth2AuthorizedClientManager} which
* manages the authorized client(s)
*/
public AudienceWritingOAuth2ClientHttpRequestInterceptor(OAuth2AuthorizedClientManager authorizedClientManager) {
Assert.notNull(authorizedClientManager, "authorizedClientManager cannot be null");
this.authorizedClientManager = authorizedClientManager;
}
@Override
public ClientHttpResponse intercept(HttpRequest request, byte[] body, ClientHttpRequestExecution execution)
throws IOException {
Authentication principal = this.principalResolver.resolve(request);
if (principal == null) {
principal = ANONYMOUS_AUTHENTICATION;
}
authorizeClient(request, principal);
try {
ClientHttpResponse response = execution.execute(request, body);
handleAuthorizationFailure(request, principal, response.getHeaders(), response.getStatusCode());
return response;
}
catch (RestClientResponseException ex) {
handleAuthorizationFailure(request, principal, ex.getResponseHeaders(), ex.getStatusCode());
throw ex;
}
catch (OAuth2AuthorizationException ex) {
handleAuthorizationFailure(ex, principal);
throw ex;
}
}
private void authorizeClient(HttpRequest request, Authentication principal) {
String clientRegistrationId = this.clientRegistrationIdResolver.resolve(request);
if (clientRegistrationId == null) {
return;
}
OAuth2AuthorizeRequest authorizeRequest = OAuth2AuthorizeRequest.withClientRegistrationId(clientRegistrationId)
.principal(principal)
.attribute("audience", request.getAttributes().get("audience"))
.build();
OAuth2AuthorizedClient authorizedClient = this.authorizedClientManager.authorize(authorizeRequest);
if (authorizedClient != null) {
request.getHeaders().setBearerAuth(authorizedClient.getAccessToken().getTokenValue());
}
}
private void handleAuthorizationFailure(HttpRequest request, Authentication principal, HttpHeaders headers,
HttpStatusCode httpStatus) {
OAuth2Error error = resolveOAuth2ErrorIfPossible(headers, httpStatus);
if (error == null) {
return;
}
String clientRegistrationId = this.clientRegistrationIdResolver.resolve(request);
if (clientRegistrationId == null) {
return;
}
ClientAuthorizationException authorizationException = new ClientAuthorizationException(error,
clientRegistrationId);
handleAuthorizationFailure(authorizationException, principal);
}
private static OAuth2Error resolveOAuth2ErrorIfPossible(HttpHeaders headers, HttpStatusCode httpStatus) {
String wwwAuthenticateHeader = headers.getFirst(HttpHeaders.WWW_AUTHENTICATE);
if (wwwAuthenticateHeader != null) {
Map<String, String> parameters = parseWwwAuthenticateHeader(wwwAuthenticateHeader);
if (parameters.containsKey(OAuth2ParameterNames.ERROR)) {
return new OAuth2Error(parameters.get(OAuth2ParameterNames.ERROR),
parameters.get(OAuth2ParameterNames.ERROR_DESCRIPTION),
parameters.get(OAuth2ParameterNames.ERROR_URI));
}
}
String errorCode = OAUTH2_ERROR_CODES.get(httpStatus);
if (errorCode != null) {
return new OAuth2Error(errorCode, null, "https://tools.ietf.org/html/rfc6750#section-3.1");
}
return null;
}
private static Map<String, String> parseWwwAuthenticateHeader(String wwwAuthenticateHeader) {
if (!StringUtils.hasLength(wwwAuthenticateHeader)
|| !StringUtils.startsWithIgnoreCase(wwwAuthenticateHeader, "bearer")) {
return Map.of();
}
String headerValue = wwwAuthenticateHeader.substring("bearer".length()).stripLeading();
Map<String, String> parameters = new HashMap<>();
for (String kvPair : StringUtils.delimitedListToStringArray(headerValue, ",")) {
String[] kv = StringUtils.split(kvPair, "=");
if (kv == null || kv.length <= 1) {
continue;
}
parameters.put(kv[0].trim(), kv[1].trim().replace("\"", ""));
}
return parameters;
}
private void handleAuthorizationFailure(OAuth2AuthorizationException authorizationException,
Authentication principal) {
ServletRequestAttributes requestAttributes = (ServletRequestAttributes) RequestContextHolder
.getRequestAttributes();
Map<String, Object> attributes = new HashMap<>();
if (requestAttributes != null) {
attributes.put(HttpServletRequest.class.getName(), requestAttributes.getRequest());
if (requestAttributes.getResponse() != null) {
attributes.put(HttpServletResponse.class.getName(), requestAttributes.getResponse());
}
}
this.authorizationFailureHandler.onAuthorizationFailure(authorizationException, principal, attributes);
}
}
OAuth2ClientCredentialsAudiencedGrantRequest
This object contains the client credentials and other client registration details relevant for querying for a new token.
public class OAuth2ClientCredentialsAudiencedGrantRequest extends OAuth2ClientCredentialsGrantRequest {
private final String audience;
public OAuth2ClientCredentialsAudiencedGrantRequest(ClientRegistration clientRegistration, String audience) {
super(clientRegistration);
this.audience = audience;
}
public String getAudience() {
return audience;
}
}
AudienceWritingOAuth2AccessTokenResponseClient
This class performs the actual exchange for an access token at the authorization server’s token endpoint. This parent class is implemented based on the underlying oauth2 type. In this post, we’ll be overriding the ClientCredentials implementation of a TokenResponseClient.
@Component
public class AudienceWritingOAuth2AccessTokenResponseClient implements
OAuth2AccessTokenResponseClient<OAuth2ClientCredentialsAudiencedGrantRequest> {
private final Logger logger = LoggerFactory.getLogger(AudienceWritingOAuth2AccessTokenResponseClient.class);
private static final String INVALID_TOKEN_RESPONSE_ERROR_CODE = "invalid_token_response";
// @formatter:off
private final RestClient restClient = RestClient.builder()
.messageConverters((messageConverters) -> {
messageConverters.clear();
messageConverters.add(new FormHttpMessageConverter());
messageConverters.add(new OAuth2AccessTokenResponseHttpMessageConverter());
})
.requestInterceptor((request,body,execution)-> {
// This interceptor is not used in this implementation, but can be customized if needed
logger.info("Request URI: {}", request.getURI());
return execution.execute(request, body);
})
.defaultStatusHandler(new OAuth2ErrorResponseErrorHandler())
.build();
// @formatter:on
private final Converter<OAuth2ClientCredentialsAudiencedGrantRequest, HttpHeaders> headersConverter = new DefaultOAuth2TokenRequestHeadersConverter<>();
private final Converter<OAuth2ClientCredentialsAudiencedGrantRequest, MultiValueMap<String, String>> parametersConverter = new DefaultOAuth2TokenRequestParametersConverter<>();
private final Consumer<MultiValueMap<String, String>> parametersCustomizer = (parameters) -> {
};
@Override
public OAuth2AccessTokenResponse getTokenResponse(OAuth2ClientCredentialsAudiencedGrantRequest grantRequest) {
Assert.notNull(grantRequest, "grantRequest cannot be null");
try {
// @formatter:off
OAuth2AccessTokenResponse accessTokenResponse = this.validatingPopulateRequest(grantRequest, grantRequest.getAudience())
.retrieve()
.body(OAuth2AccessTokenResponse.class);
// @formatter:on
if (accessTokenResponse == null) {
OAuth2Error error = new OAuth2Error(INVALID_TOKEN_RESPONSE_ERROR_CODE,
"Empty OAuth 2.0 Access Token Response", null);
throw new OAuth2AuthorizationException(error);
}
return accessTokenResponse;
} catch (RestClientException ex) {
OAuth2Error error = new OAuth2Error(INVALID_TOKEN_RESPONSE_ERROR_CODE,
"An error occurred while attempting to retrieve the OAuth 2.0 Access Token Response: "
+ ex.getMessage(),
null);
throw new OAuth2AuthorizationException(error, ex);
}
}
private RestClient.RequestHeadersSpec<?> validatingPopulateRequest(OAuth2ClientCredentialsAudiencedGrantRequest grantRequest,
String audience) {
validateClientAuthenticationMethod(grantRequest);
return populateRequest(grantRequest, audience);
}
private void validateClientAuthenticationMethod(OAuth2ClientCredentialsGrantRequest grantRequest) {
ClientRegistration clientRegistration = grantRequest.getClientRegistration();
ClientAuthenticationMethod clientAuthenticationMethod = clientRegistration.getClientAuthenticationMethod();
boolean supportedClientAuthenticationMethod = clientAuthenticationMethod.equals(ClientAuthenticationMethod.NONE)
|| clientAuthenticationMethod.equals(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
|| clientAuthenticationMethod.equals(ClientAuthenticationMethod.CLIENT_SECRET_POST);
if (!supportedClientAuthenticationMethod) {
throw new IllegalArgumentException(String.format(
"This class supports `client_secret_basic`, `client_secret_post`, and `none` by default. Client [%s] is using [%s] instead. Please use a supported client authentication method, or use `set/addParametersConverter` or `set/addHeadersConverter` to supply an instance that supports [%s].",
clientRegistration.getRegistrationId(), clientAuthenticationMethod, clientAuthenticationMethod));
}
}
private RestClient.RequestHeadersSpec<?> populateRequest(OAuth2ClientCredentialsAudiencedGrantRequest grantRequest,
String audience) {
MultiValueMap<String, String> parameters = this.parametersConverter.convert(grantRequest);
if (parameters == null) {
parameters = new LinkedMultiValueMap<>();
}
this.parametersCustomizer.accept(parameters);
var tokenRequestUri = grantRequest.getClientRegistration().getProviderDetails().getTokenUri()
+ (audience != null ? "?audience=" + audience : "");;
return this.restClient.post()
.uri(tokenRequestUri)
.headers((headers) -> {
HttpHeaders headersToAdd = this.headersConverter.convert(grantRequest);
if (headersToAdd != null) {
headers.addAll(headersToAdd);
}
})
.body(parameters);
}
}
The demo files are available here: https://github.com](https://github.com/StevenPG/spring-security-oauth2-client-credentials-demo
Sample Output from the test project!
:: Spring Boot :: (v3.5.0)
2025-06-04T01:56:49.335-04:00 INFO 16165 --- [ main] com.example.demo.DemoApplication : Starting DemoApplication using Java 24.0.1 with PID 16165 (/spring-security-oauth2-client-credentials-demo/build/classes/java/main started by user in /spring-security-oauth2-client-credentials-demo)
2025-06-04T01:56:49.336-04:00 INFO 16165 --- [ main] com.example.demo.DemoApplication : No active profile set, falling back to 1 default profile: "default"
2025-06-04T01:56:49.597-04:00 INFO 16165 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port 8081 (http)
2025-06-04T01:56:49.601-04:00 INFO 16165 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
2025-06-04T01:56:49.601-04:00 INFO 16165 --- [ main] o.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/10.1.41]
2025-06-04T01:56:49.612-04:00 INFO 16165 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2025-06-04T01:56:49.612-04:00 INFO 16165 --- [ main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 262 ms
Application has started successfully!
2025-06-04T01:56:49.718-04:00 INFO 16165 --- [ main] ceWritingOAuth2AccessTokenResponseClient : Request URI: http://localhost:8080/realms/master/protocol/openid-connect/token?audience=httpbin.org
Received a successful response from the REST client!
Application has completed successfully!
2025-06-04T01:56:50.068-04:00 INFO 16165 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port 8081 (http) with context path '/'
2025-06-04T01:56:50.072-04:00 INFO 16165 --- [ main] com.example.demo.DemoApplication : Started DemoApplication in 0.866 seconds (process running for 1.054)
